MDF-86V188E
Trufrost -86 ULT Freezers are specially designed for long term storage of various biological products, including viruses, germs, erythrocytes, leucocytes and cutis. They are ideal for blood banks, hospitals, epidemic prevention services, research institutes, laboratories in electronic & chemical plants, biological institutes and fisheries. All -86V models comes with 2 years comprehensive warranty on machine + 1 year extended warranty on compressor.
Key Features of Ultra Low Temp Freezers:
- Optimized double cascade refrigeration technology for ultra-low temperature application
- Environment friendly CH refrigerant helps save up to 50% on energy costs
- Advanced Vacuum Insulation Panel (VIP) technology enhances sealing and minimizes heat conduction rate resulting in 30% more storage volume
- Suitable for 10°C to 32°C ambient temperature. Rapid cooling even at 38°C ambient temperature
- LED display for easy viewing of cabinet temperature, set temp-erature, ambient temperature, input voltage and early warning for malfunctions
- Derived temperature and alarm record within a month through USB port
- Special noise reduction design with advanced shock absorbers in key component
- Easy to remove and clean dust filter
- Double lock system to avoid abnormal door opening
Safety Control System:
- Malfunction alarms for cabinet temperature, voltage or ambient temperature exceeding the range and also for power failure or sensor error
- Audio visual alarm with buzzer & flashing light
- Optional remote alarm through USB port or SMS alarm
- Password protected lockable keyboard
Technical Specification
| Model No. | MDF-86V188E | |
| Specifications | Self/drawer QTY | Stainless Steel (2) |
| Cooling | Direct Cooling | |
| Defrost | Manual | |
| Refrigerant | Mixed Gas | |
| Power Consumption (kWh/24h) | 8.2 | |
| Noise (db) | 55 | |
| Ambient temperature (C) | 10 ~ 32 | |
| Temperature range (C) | -40 ~ -86 | |
| Cooling System | Compressor Brand/QTY | CUBIGEL/1 |
| Sensor | PTC | |
| Temperature Controller | Microprocessor | |
| Display | DIGITAL Display | |
| Power | Voltage/Frequency (V/Hz) | 220/50Hz |
| Power (W) | 610W | |
| Current (A) | 3.3 | |
| Material | Inside Material | Stainless Steel |
| Outside Material | Color Sprayed Steel | |
| Insulation | PUF | |
| Size | Capacity (L/cu.ft) | 188/6.63 |
| Net/Gross Weight (Kg) | 145/180 | |
| Exterior Size (WxDxH) (mm) | 880 x 810 x 1607.5 | |
| Interior Size (WxDxH) (mm) | 465 x 465 x 830 | |
| Package Size (WxDxH) (mm) | 880 x 920 x 1830 | |
| Frozen Racks | Racks | 9 (4×3) |
| Boxes (2 Inches) | 108 | |
| Samples (2ml) | 10800 | |
| Alarm | High/Low Temperature | Y |
| Power Failure | – | |
| Abnormal Voltage | – | |
| Sensor Error | Y | |
| Filter Screen Check | – | |
| Thermostate Failure | Y | |
| Low Battery | – | |
| Condenser Clean | – | |
| High Ambient Temperature | – | |
| Door Ajar | – | |
| Castor | Y | |
| Inside Door | 3 | |
| Test Hole QTY/Diameter | 1/25M | |
| USB Port | – | |
| Chart Recorder | – | |
| Data Logger | Optional | |
| Power Failure Backup System (Alarm) | 72h | |
| Remote Alarm Port | – | |
| CO2 Backup System | Optional | |
| LN2 Backup System | Optional | |
| Certifications | ISO, CE |

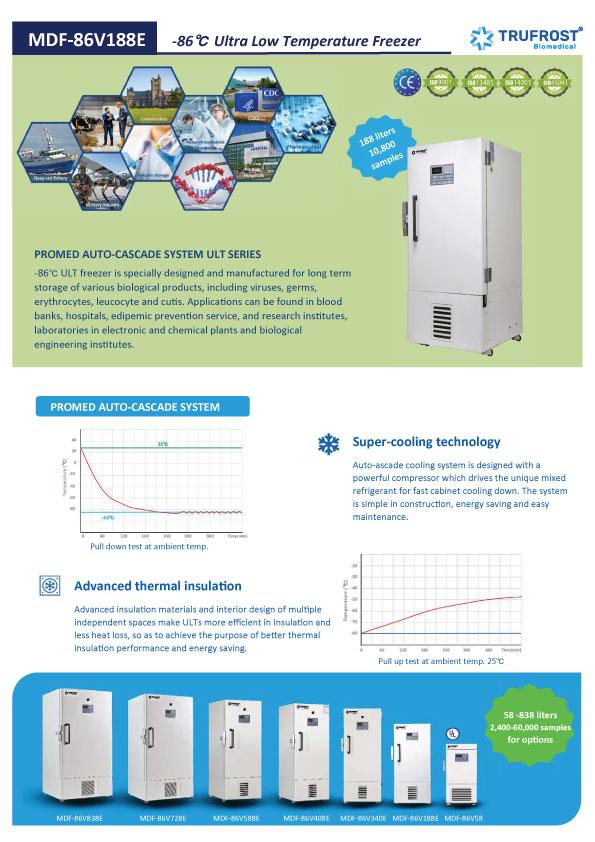

View Flyer
